Quick runs

You can quickly run any of the models in Tapestree.jl by following these minimal tutorials under mostly default parameters. To conduct thorough analyses, add options, use additional models, or several other capabilities (such as plotting) please read the Manual.

INSANE models using Bayesian Data augmentation (DA)

INSANE models output two files, a .log file that saves the standard MCMC parameters trace (can be read in by Tracer link) and a .txt file with the data augmented (DA) trees that can be read using iread() function. These two vectors (named below r and tv consistently for the parameter Matrix and the DA tree vector) are also returned by the function and kept in memory on the active Julia sessions. Moreover, the DA tree vector can be exported as an annotated nexus file using write_nexus(), allowing interoperability with other phylogenetic software.

Reading a newick tree

To read a tree in newick format you can just use

tree = read_newick("<tree file directory in newick format>")

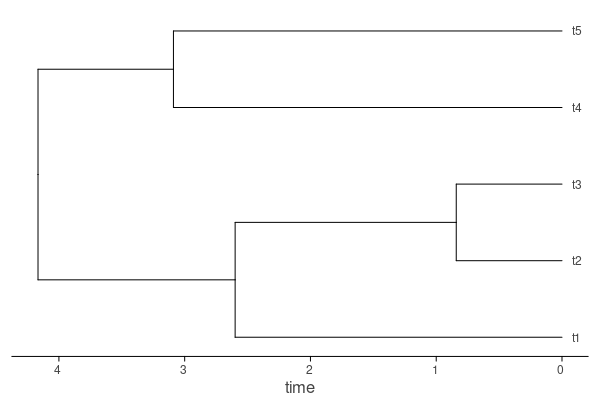

You can plot this tree by loading the Plots package and then doing

plot(tree)

Diversification (birth-death) models

Constant Birth-Death (CBD):

using Tapestree

tree = read_newick("<tree file directory in newick format>")

r, tv = insane_cbd(tree,
                   niter = 100_000,
                   nthin = 1_000,
                   ofile = "<output files directory>")

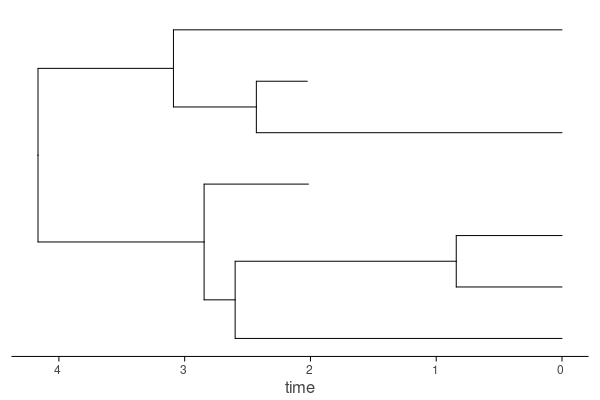

The tv is a vector of all data augmented (DA) posterior trees. You can plot one of them doing

plot(tv[1])

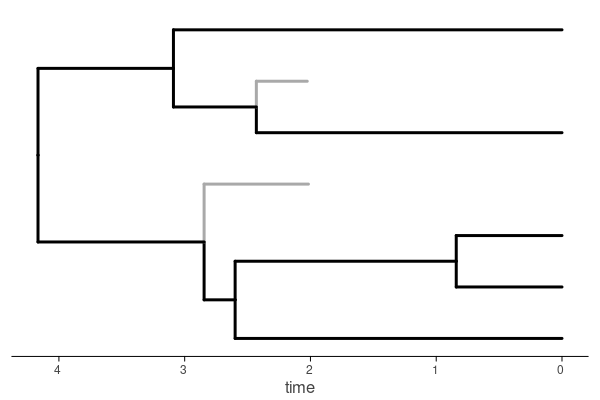

You can discern the data augmented lineages by using showda = true

plot(tv[1], showda = true, linewidth = 3.0)

You can estimate and plot the diversity through time (DTT) every 0.1 time units by doing

plot(ltt(tv), 0.1)

Birth-Death Diffusion (BDD):

using Tapestree

tree = read_newick("<tree file directory in newick format>")

r, tv = insane_gbmbd(tree,
                     niter = 100_000,
                     nthin = 1_000,
                     ofile = "<output files directory>")

To estimate the posterior average speciation and extinction rates along the tree, we first remove the DA lineages

tv0 = remove_unsampled(tv)

and then estimate the average

tm = imean(tv0)

and, finally, estimate average posterior speciation rates of species

tipget(tm, tree, birth)

and extinction rates

tipget(tm, tree, death)

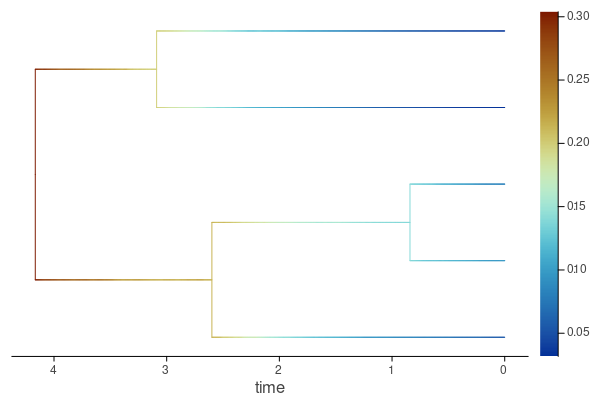

You can plot the tree "painted" by the latent speciation rates

plot(tm, birth)

Or the extinction rates

plot(tm, death)

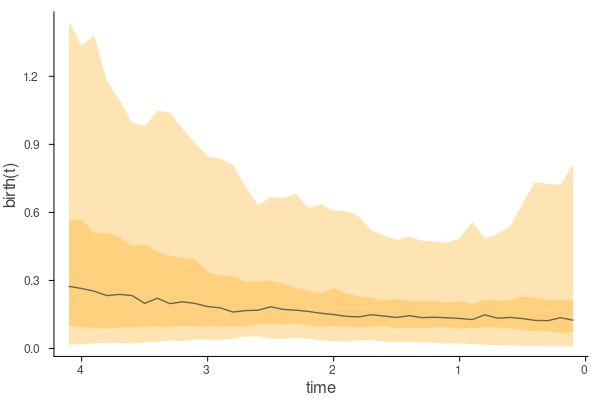

We can also plot, say, the cross-lineage average speciation rate

plot(birth, 0.1, tv)

One can save this tree vector as an annotated nexus file that can be read by other phylogenetic software

write_nexus(tv, tree, "<output directory>")

Constant Fossilized Birth-Death (CFBD):

using Tapestree

tree = read_newick("<tree file directory in newick format>", true)

r, tv = insane_cfbd(tree,
                    niter = 100_000,
                    nthin = 1_000,
                    ofile = "<output files directory>")

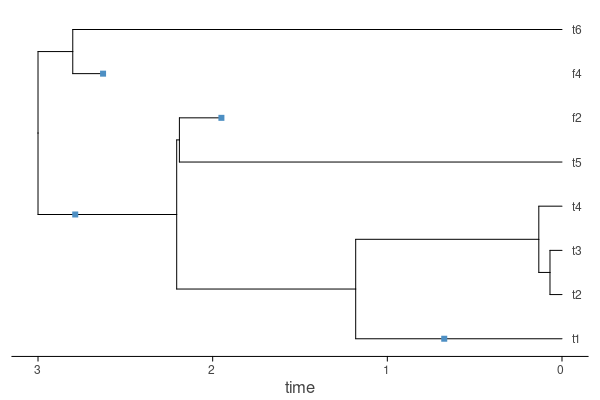

One can plot the input tree

plot(tree)

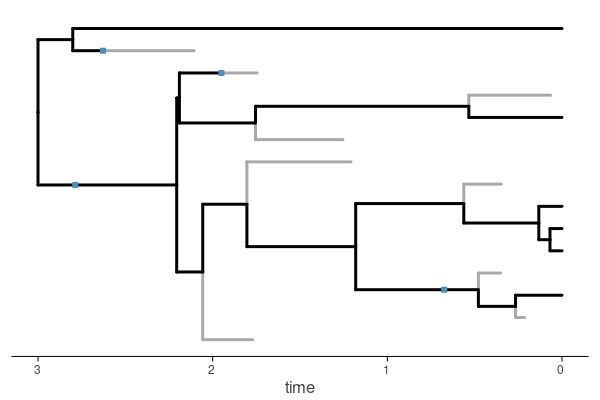

And compare it to one randomly chosen posterior data augmented trees

plot(rand(tv), showda = true, linewidth = 3)

Tapestree allows for piece-wise constant rates of preservation that change at times specified by the user ("episodic FBD"). For example, if the input is a tree with, say, $tree height = 3.0$ (the depth of the tree), we could want to specify that the rates of fossilization are different between, say, the periods $(3.0, 2.1)$, $(2.1,0.9)$, and $(0.9,0)$.

For this it suffices to include a (Float64) vector of times where the fossilization rate, $\psi$, is allowed to change in the ψ_epoch argument

r, tv = insane_cfbd(tree,
                    niter   = 100_000,
                    nthin   = 1_000,
                    ψ_epoch = [2.1, 0.9],
                    ofile   = "<output files directory>")

Finally, it might be desirable to incorporate fossil occurrences of species in the empirical tree that were not included. For instance, we might have a species represented only by one fossil occurrence as a tip in the tree, but we have information of some other fossil occurrences of this species. Including this information will better inform the fossilization rate.

To continue the example above, suppose that we have $2$, $1$ and $3$ additional fossil occurrences for species represented in our tree, for the three periods. To include this information, we simply specify it in the f_epoch argument:

r, tv = insane_cfbd(tree,
                    niter   = 100_000,
                    nthin   = 1_000,
                    ψ_epoch = [2.1, 0.9],
                    f_epoch = [2, 1, 3],
                    ofile   = "<output files directory>")

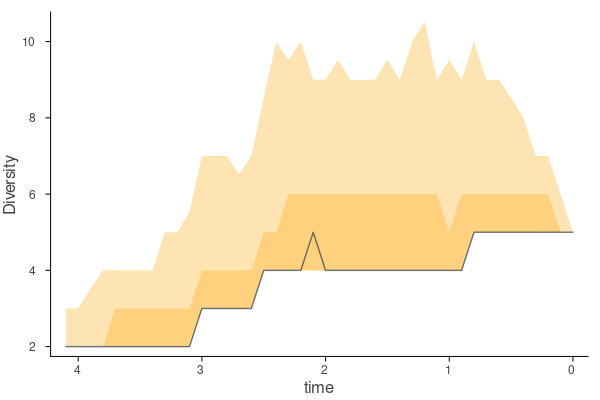

Let's look at the diversity through time, and add also the LTT from the empirical tree for comparison

plot(ltt(tv), 0.1)
plot!(ltt(tree), linewidth = 2.0, linestyle = :dash)

Fossilized Birth-Death Diffusion (FBDD):

using Tapestree

tree = read_newick("<tree file directory in newick format>", true)

r, tv = insane_gbmfbd(tree,
                      niter = 100_000,
                      nthin = 1_000,
                      ofile = "<output files directory>")

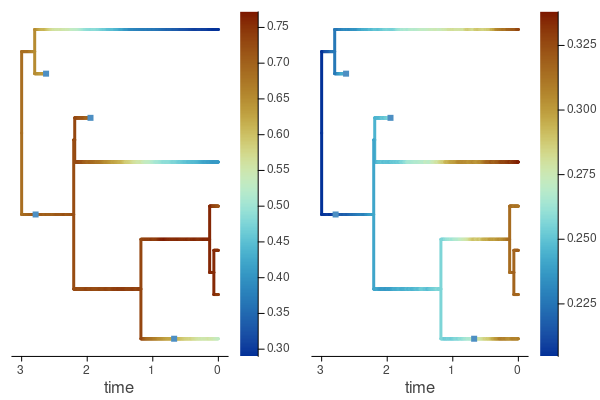

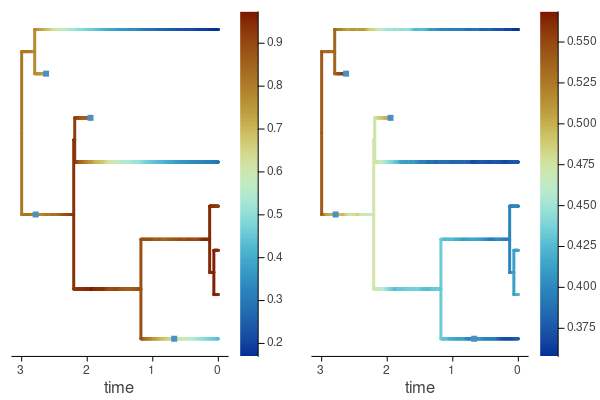

We can plot the average speciation and extinction, after removing unsampled (DA) lineages and estimating the average using

tv0 = remove_unsampled(tv)
tm  = imean(tv0)
p0 = plot(tm, birth)
p1 = plot(tm, death)
plot(p0, p1, linewidth = 3.0)

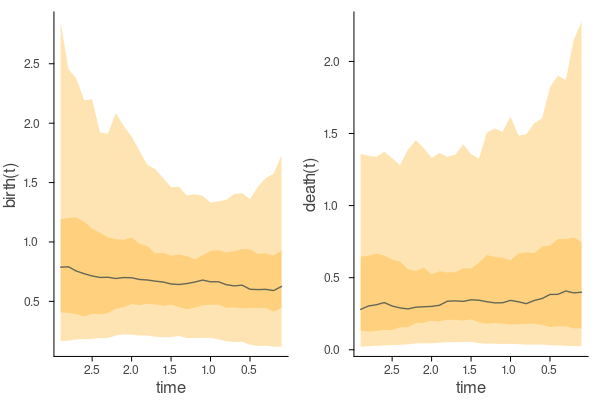

As with other birth-death diffusion models, we can plot the cross-lineage average speciation rate and extinction rates

p0 = plot(birth, 0.1, tv)
p1 = plot(death, 0.1, tv)
plot(p0, p1)

We can obtain the average posterior speciation rates of species

tipget(tm, tree, birth)

and extinction rates

tipget(tm, tree, death)

Occurrence Birth-Death Diffusion (OBDD):

using Tapestree
using DelimitedFiles

tree = read_newick("<tree file directory in newick format>", true)
ωtimes = readdlm("<occurrence file in CSV format>", ';')[:]

r, tv = insane_gbmobd(tree,
                      ωtimes,
                      niter = 100_000,
                      nthin = 1_000,
                      ofile = "<output files directory>")

We can plot the average speciation and extinction, after removing unsampled (DA) lineages and estimating the average using

tv0 = remove_unsampled(tv)
tm  = imean(tv0)
p0 = plot(tm, birth)
p1 = plot(tm, death)
plot(p0, p1, linewidth = 3.0)

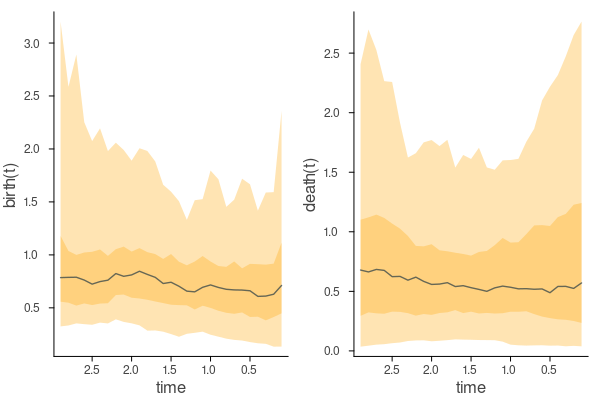

As with other birth-death diffusion models, we can plot the cross-lineage average speciation rate and extinction rates

p0 = plot(birth, 0.1, tv)
p1 = plot(death, 0.1, tv)
plot(p0, p1)

Diffused Brownian motion (DBM) model

using Tapestree, DelimitedFiles

tree = read_newick("<tree file directory in newick format>", true)
tdat = readdlm("<trait file>")
xavg = Dict{String, Float64}(tdat[i,1] => tdat[i,2] for i in 1:size(tdat,1))

r, tv = insane_dbm(tree,
                   xavg,
                   niter = 100_000,
                   nthin = 1_000,
                   ofile = "<output files directory>")

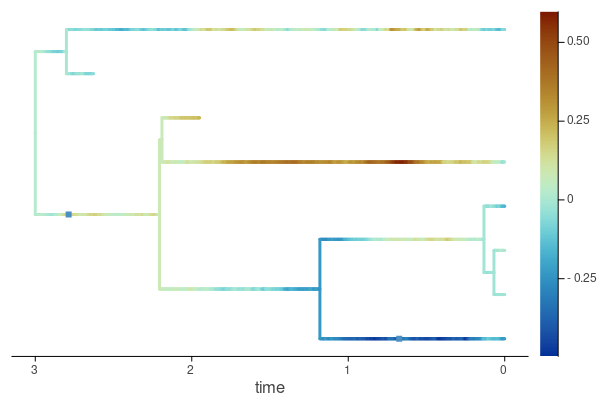

We can plot one random posterior trait history on the tree

plot(rand(tv), trait, linewidth = 3.0)

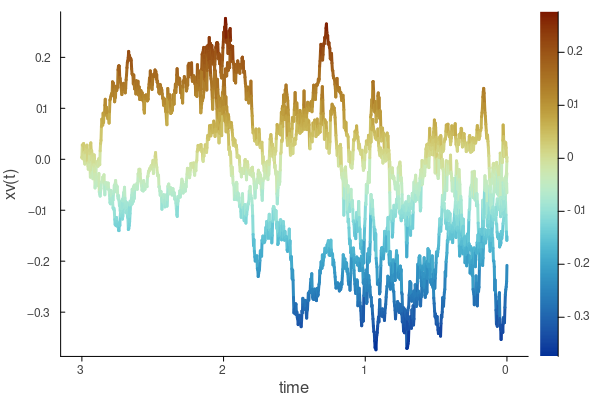

Or we can plot the phenogram using

plot(trait, rand(tv), linewidth = 3.0)

We can estimate the average posterior for the traits and rates

tm = imean(tv)

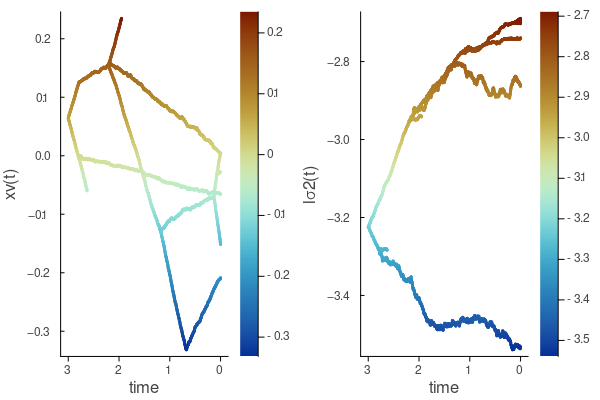

and plot the average paths for trait and rate evolution

p0 = plot(trait, tm, linewidth = 3.0)
p1 = plot(logtraitrate, tm, linewidth = 3.0)
plot(p0, p1)

To add trait uncertainty around the average values (assumed to be Normally distributed), one needs another Dictionary, just as with xavg above, but having each species point to the standard deviation to set the argument xs. For instance, if we have another simple .txt file with species names in the first column and standard deviations in the second:

tvar = readdlm("<trait file>")
xstd = Dict{String, Float64}(tdat[i,1] => tdat[i,2] for i in 1:size(tdat,1))

r, tv = insane_dbm(tree,
                   xavg,
                   xs    = xstd,
                   niter = 100_000,
                   nthin = 1_000,
                   ofile = "<output files directory>")

We can obtain the average posterior traits of species using

tipget(tm, tree, trait)

and their underlying evolutionary rates using

tipget(tm, tree, traitrate)

ESSE & TRIBE

For ESSE and TRIBE go directly to the manual ESSE & TRIBE.
